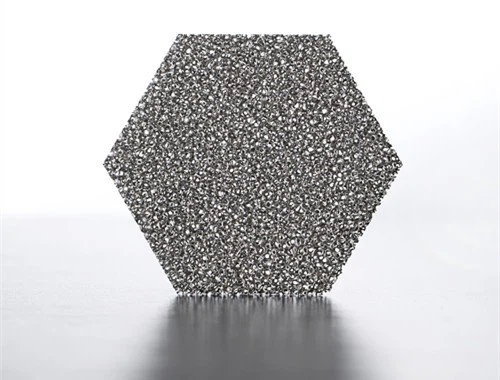

Porous Metal Foam

Material: nickel, copper, iron, iron-nickel alloy, copper-nickel alloy
Thickness: 0.1-35mm
Aperture: 0.1-10mm
Porosity: 60-98%, can be customized
Through porosity: ≥98%
Bulk density: 0.1-3.0g/cm3, can be customized
PPI (number of holes per inch): 5-150
Size: various sizes and shapes can be customized

Send Inquiry

Description

Product introduction

Porous Metal Foam is a unique metal material with a specific pore size and porosity. It is made from single or multiple alloys such as nickel, copper, iron, and chromium.
The material has a low bulk density, a large specific surface area, excellent energy absorption, and high strength and rigidity.
Its three-dimensional, open-hole structure provides exceptional corrosion resistance and is easily processed through cutting, bending, and welding.
Porous metal foam is made of polyurethane sponge as the skeleton material, plated with metal, and finally sintered.

Main feature

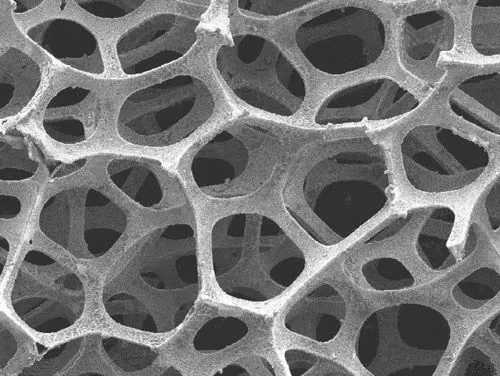

Porous Metal Foam has a distinctive open cell structure with interconnected pores that are evenly distributed to significantly improve conductivity.
The density of metal foam can be adjusted by varying the weight of the product, which can be manufactured with different porosity to meet the specific requirements of different application scenarios.
The open porosity of this product is more than 98%, the pores' size and spacing can be adjusted to meet various application requirements.

learn more

Product parameter

Material	Nickel foam, copper foam, iron foam, iron-nickel foam, copper-nickel foam, iron-nickel-chromium foam
Thickness	0.1-35mm
Aperture	0.1-10mm
Porosity	60-98%, can be customized
Through porosity	≥98%
Bulk density	0.1-3.0g/cm3, can be customized

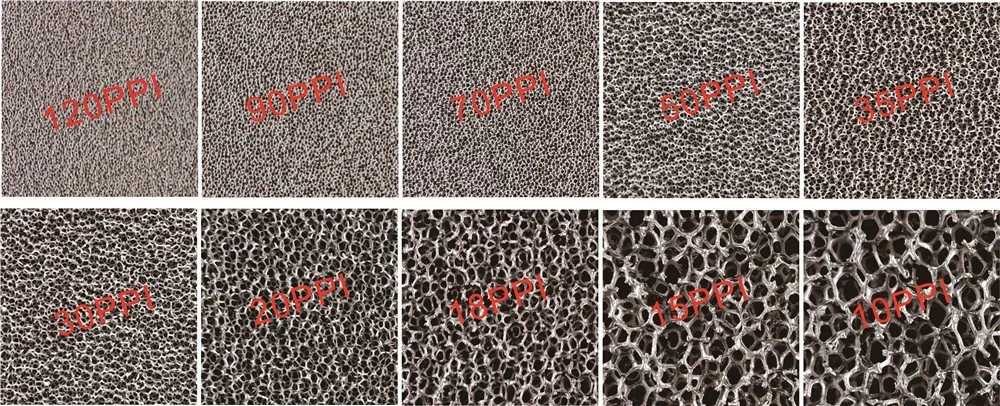

PPI (number of holes per inch)	5-150
Size	Various sizes and shapes can be customized

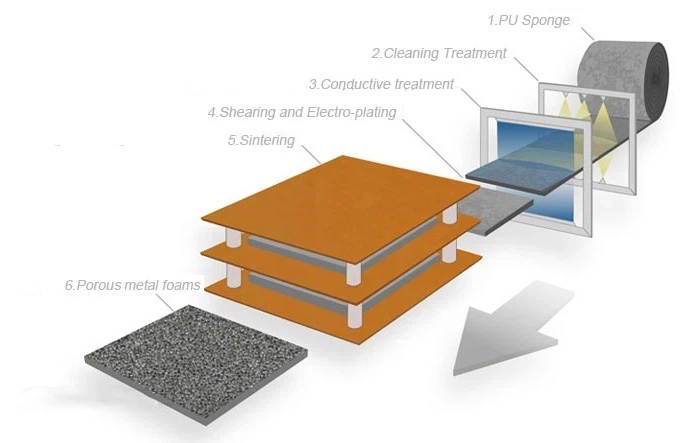

product key technologies

01.

The Substrate Electroplating Process

1. PU Sponge

2. Cleaning Treatment

3. Conductive treatment

4. Shearing and Electro-plating

5. Sintering

6. Porous metal foams

02.

Personalized Service

The material's filtration and flow characteristics can be precisely controlled due to its PPI range of 5 to 150 and pore size range of 0.1mm to 10mm.Our commitment is to provide customers with innovative, high-quality porous materials that meet a wide range of industrial and commercial needs. Our products deliver superior performance and durability, whether you require high porosity materials for filtration, separation or structural applications.

Product application

The strength and stiffness of porous metal foams can be adjusted by changing the density, pore space or pore size, making them them useful for energy absorption.
The material is lightweight, absorbs sound and shock effectively, has high energy absorption and electromagnetic shielding capabilities, excellent heat insulation, high temperature resistance, and is non-combustible.
Due to its high surface area to volume ratio, the material has better thermal conductivity than any other material.
They can also be compressed to increase surface area and flow resistance while maintaining an open-cell structure.

Be used in a wide range of industries.

Heat Dissipation in Electronics

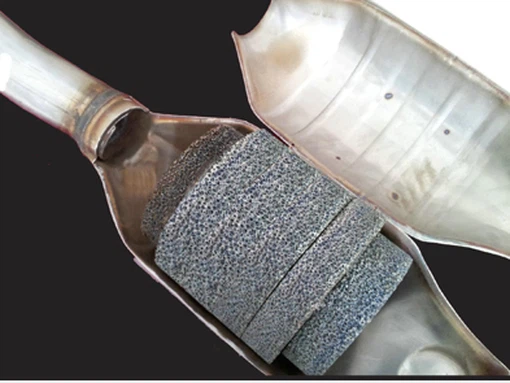

Automotive Exhaust Filtration

Buffer And Shock-absorbing Device

Electrode Material

Commercial Kitchen Hood Grease Filters

Grit Filter

Packing details

The porous metal foam products will be packed with waterproof paper or a weave bag and then placed into pallets or wooden cases.
Spool wire or ribbon products will be packed with plastic film and standard cardboard boxes before being placed into pallets or wooden cases.
We offer packaging solutions that can be tailored to meet our customers' specific requirements. Our team is equipped to select the most suitable transportation vehicles, taking into account the specific packing conditions.
