Electrically Conductive Foam Tape

Color: silver gray/ black
Thickness: 0.1-15mm
Viscosity (stripping force): ≥1.0kgf/inch
(XY) Surface resistance (sponge): ≤0.2Ω /inch
Surface resistance (adhesive): ≤1.0Ω /inch
(Z) Vertical resistance Ω /inch2: ≤0.05
Initial adhesion: 3#
Room temperature retaining power 1000G: ≥24H
Shielding performance: 65-95dB(10MHz-18GHz)
Temperature resistance: -40 to 80℃

Send Inquiry

Description

Product introduction

There are many types of electrically conductive foam tape as below:

This product combines conductive fabric with PU foam to form a die-cut type with back adhesive coating.

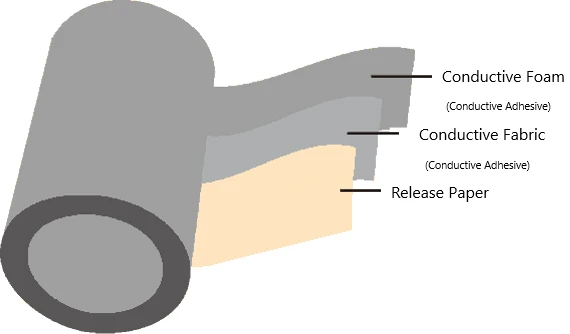

The tape comprises conductive fabric and three-dimensional (3D) conductive sponge.
Variants include conductive fabric with adhesive applied, or single-sided adhesive-coated die-cut versions.
Additional materials such as copper foil, aluminum foil, conductive adhesives, hot melt adhesives, acrylic adhesives, and conductive mesh can be integrated to expand product types. These are widely used in electronic communication devices for grounding applications.

Main feature

Electrically conductive foam tapes can be cut into different sizes according to customers' requirements, and the thickness function can be customised or combined according to customers' different needs.
The product has good elasticity, easy to cut, easy to use.
This material has good shielding and conductivity.
It has uniform resistivity distribution, is soft and elastic and has good corrosion resistance.
It has good impact resistance and meets EU environmental standards.

learn more

Product parameter

Item	Unit	Value	Test method/ Standard
Color	/	silver gray/ black	--
Thickness	mm	0.1-15	ASTM D3652
Viscosity (stripping force)	kgf/inch	≥1.0	GB /T 2797
(XY) Surface resistance (sponge)	Ω /inch	≤0.2	ASTM F390
Surface resistance (adhesive)	Ω /inch	≤1.0	ASTM F390
(Z) Vertical resistance	Ω /inch2	≤0.05	ASTM F390
Initial adhesion	#	3#	GB4852-1984
Room temperature retaining power 1000G	H	≥24	GB/T 24851
Shielding performance	dB(10MHz-18GHz)	65-95	MIL-DTL-83528E
Temperature resistance	℃	-40 to 80	ASTM D476

product key technologies

01.

The substrate electroplating process

1. PU Sponge

2. Cleaning Treatment

3. Conductive treatment and electro-plating

4. Conductive Sponge

02.

Custom service

The product can be die-cut into different shapes and specifications according to customer drawings, and is suitable for various scenarios such as shielding, conductive and grounding, etc.

Product application

Electrically conductive foam tape is widely applied in electronic communication, computer, medical, aerospace, and marine product shielding, grounding, gap filling, buffering, electromagnetic countermeasures, and electronic interference mitigation. It also serves protective functions for luggage, financial card account information, and financial anti-theft systems. This product is particularly utilized in IT electronic product shielding design, conductive fabric tape production, conductive foam manufacturing, data servers, game servers, communication servers, and other server-class equipment for electromagnetic wave shielding, compatibility enhancement, and grounding optimization

Be used in a wide range of industries.

Communication equipment

Gaming equipment

Display device

Shielded shelter

Electromagnetic shielding tent

Military camouflage of tactical targets

Packing & delivery

Packing Details

Our standard export packing is as follows: internal anti-collision protection, external export wooden box packing.

We can supply express, air, and sea, and will find the most suitable way according to customer requirements.

We accept responsibility for damage incurred during transportation. In this condition, we will replace the damaged part free of charge.

We offer packaging solutions that can be tailored to meet our customers' specific requirements. Our team is equipped to select the most suitable transportation vehicles, taking into account the specific packing conditions.

Delivery Time

10-15 days after confirming the order, the specific delivery date of conductive foam tape products should be based on the production season and order quantity.

product-1024-768

Product advantage

highlighting advantages of our products

Creative idea

Our products are based on previous products to do a substantial amount of innovation, product performance dramatically!

good quality

We do multiple tests before leaving the factory. And we have passed ISO 9001, CE and other quality tests.

customized services

Regardless of your industry, we can customize enterprise solutions to improve your productivity and reduce manual labor!

Techonical support

we provide technical support when you receive the goods, including installation, debugging and maintenance services.

Our certificate

Our company has agreed by ISO9001, ISO14001, ISO45001,and was accepted by Hunan technology as high-tech and h-tech product,also known as the "double h-tech "company. at the same time, our company is a national high-tech enterprise and a provincial new material enterprise. It has undertaken the industrialization of strategic emerging materials in Hunan Province and the industrialization of lightweight metal materials and shielding materials of the Department of Science and Technology.
