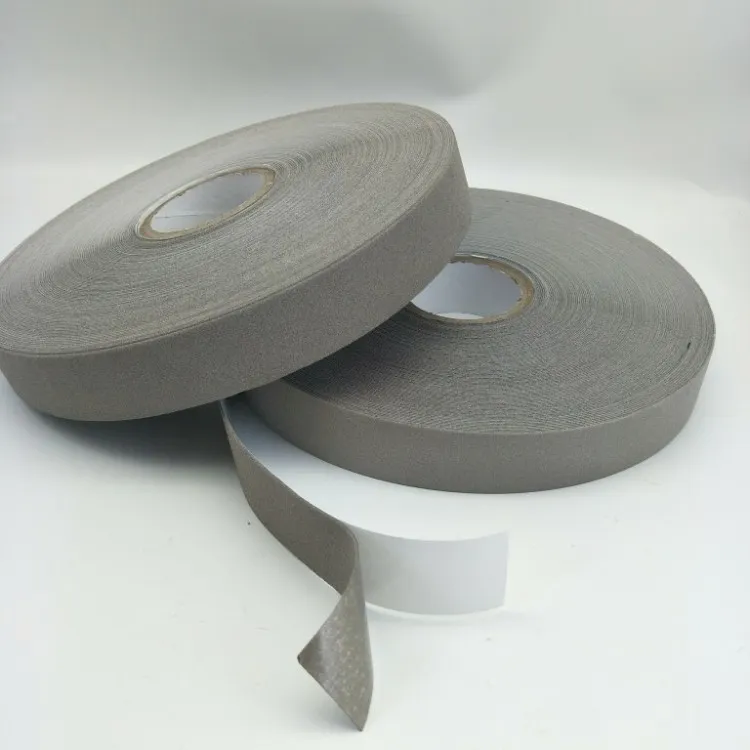

ESD Foam Tape

Color: silver gray/ black
Thickness: 0.1-15mm
Viscosity (stripping force): ≥1.0kgf/inch
(XY) Surface resistance (sponge): ≤0.2Ω /inch
Surface resistance (adhesive): ≤1.0Ω /inch
(Z) Vertical resistance Ω /inch2: ≤0.05
Initial adhesion: 3#
Room temperature retaining power 1000G: ≥24H
Shielding performance: 65-95dB(10MHz-18GHz)
Temperature resistance: -40 to 80℃

Send Inquiry

Description

Product introduction

ESD foam tape is used to isolate sensitive components and assemblies during storage or transport to prevent damage from electrostatic discharge from live objects or electrostatic fields.
The product features a built-in conductive path/network, which provides excellent anti-static performance.
It can quickly promote electrostatic leakage without relying on environmental humidity, and its anti-static performance is not affected by changes in humidity.

Main feature

The product has good material handling performance, easy lamination and die-cutting.
It also boasts excellent electrical conductivity, with an electrostatic index value of 103-109 Ω/sq.

learn more

Product paramter

Item	Unit	Value	Test method/ Standard
Color	/	silver gray/ black	--
Thickness	mm	0.1-15	ASTM D3652
Viscosity (stripping force)	kgf/inch	≥1.0	GB /T 2797
(XY) Surface resistance (sponge)	Ω /inch	≤0.2	ASTM F390
Surface resistance (adhesive)	Ω /inch	≤1.0	ASTM F390
(Z) Vertical resistance	Ω /inch2	≤0.05	ASTM F390
Initial adhesion	#	3#	GB4852-1984
Room temperature retaining power 1000G	H	≥24	GB/T 24851
Shielding performance	dB(10MHz-18GHz)	65-95	MIL-DTL-83528E
Temperature resistance	℃	-40 to 80	ASTM D476

product key technologies

01.

The Substrate Electroplating Process

1. PU Sponge

2. Cleaning Treatment

3. Conductive treatment and electro-plating

4. Conductive Sponge

02.

Custom service

The product can be die-cut into different shapes and specifications according to customer drawings, and is suitable for various scenarios such as shielding, conductive and grounding, etc.

Product feature and application

The product offers permanent ESD prevention and is not affected by dry ambient humidity.
The components and packaging are resistant to chemical corrosion.
They are also thermally and acoustically insulated, and are not susceptible to water absorption or moisture.
The ESD foam tape has good secondary processing performance and is easy to mould.

Be used in a wide range of industries.

Communication equipment

Gaming equipment

Display device

Shielded shelter

Electromagnetic shielding tent

Military camouflage of tactical targets

Packing & delivery

Packing Details

Our standard export packing is as follows: internal anti-collision protection, external export wooden box packing.

We can supply express, air, and sea, and will find the most suitable way according to customer requirements.

We accept responsibility for damage incurred during transportation. In this condition, we will replace the damaged part free of charge.

We offer packaging solutions that can be tailored to meet our customers' specific requirements. Our team is equipped to select the most suitable transportation vehicles, taking into account the specific packing conditions.

Delivery Time

10-15 days after confirming the order, the specific delivery date of ESD foam tape products should be based on the production season and order quantity.

product-1024-768

Product advantage

highlighting advantages of our products

Creative idea

Our products are based on previous products to do a substantial amount of innovation, product performance dramatically!

good quality

We do multiple tests before leaving the factory. And we have passed ISO 9001, CE and other quality tests.

customized services

Regardless of your industry, we can customize enterprise solutions to improve your productivity and reduce manual labor!

Techonical support

we provide technical support when you receive the goods, including installation, debugging and maintenance services.

our certificate

Our company has agreed by ISO9001, ISO14001, ISO45001,and was accepted by Hunan technology as high-tech and h-tech product,also known as the "double h-tech "company. at the same time, our company is a national high-tech enterprise and a provincial new material enterprise. It has undertaken the industrialization of strategic emerging materials in Hunan Province and the industrialization of lightweight metal materials and shielding materials of the Department of Science and Technology.

FAQ

do you have any question?

Are you a factory/manufacturer or a distributor?

We are a direct factory that owns production lines and employs workers. Our operations are flexible, and you do not need to worry about extra charges from middlemen or traders.

Can the products be customized?

All products can be customized to meet your specific requirements.

Can I get free samples?

If the sample is available, it can be provided for free. If the sample is unavailable, customization is required.

What is the delivery time after payment?

Usually it takes 3-5 days if the goods are in stock or 15-20 days if they are customized.

company profile

Our company was founded in 2015, it's a new materials industry with capabilities on independent R&D, production and sales as one .Which specializes in R&D and production of metal foam materials, EMI shielding materials and surface electroplating metal materials for many years. Our R&D team is composed of academicians and experts from domestic metal foam professionals.

After many years of efforts, we now own our own intellectual property rights in the production of high purity and high porosity metal foams.

Our metal foams are widely used in filtration, shielding, catalyst support, integrated electronics, lightweight vehicles and engineering equipment, aerospace and other fields.
