Anti Static Fabric

Length and width: L ≥5000mm /W ≥1090mm
Thickness: T=0.015-0.3mm
Woven density: 180-600T
Surface resistance: ≤0.05Ω
Vertical resistance: ≦0.03Ω
Shielding performance: 40(Min)10Mhz-18Ghz/60-90dB
Temperature resistance range: -40℃ ~ 85℃, 72h cycle impact resistance
Shielding efficiency: 10MHz ~ 3GHz/65~75dB
Weather resistance: -50℃ ~ 120℃
Color: silver grey / black
Material composition: polyester fiber, nickel, copper

Send Inquiry

Description

Product introduction

The anti static fabric does not require ambient humidity to promote rapid electrostatic discharge, and the antistatic performance is not affected by ambient humidity.
ESD timeliness permanent ESD prevention.
Not affected by dry ambient humidity.
Excellent electrical conductivity: electrostatic index value 103 -- 106 Ω/sq.

Main feature

The anti static fabric has inherent conductive path/network, excellent antistatic performance.
The thin thickness of the product can be used in a narrow range of clearance, it has good flexibility and multiple bending will not affect the performance.
This material has the chemical corrosion resistance: organic solvent, acid, alkali resistance, etc.
It has no chemical corrosion posporiity: no corrosion of components and packaging.
The material has good secondary processing performance, easy to mould.

learn more

Product parameter

Index	Technical Parameter
Length and width	L ≥5000mm /w ≥1090mm
Thickness	T=0.015-0.3mm
Woven density	180-600T
Surface resistance	≤0.05Ω
Vertical resistance	≦0.03Ω
Shielding performance	40(Min)10Mhz-18Ghz/60-90dB
Temperature resistance range	-40℃ ~ 85℃, 72h cycle impact resistance
Shielding efficiency	10MHz ~ 3GHz/65~75dB
Weather resistance	-50℃ ~ 120℃
Color	Silver grey / Black
Material composition	Polyester fiber, nickel, copper
Metal adhesion state chemical deposition	Low powder removal rate, adhesion grade ≤3 (Grade 1 is the best, grade 5 is the worst)
Stock conditions/Shelf life	Room temperature 23℃, RH65%, ventilated and dry / 24 months

product key technologies

01.

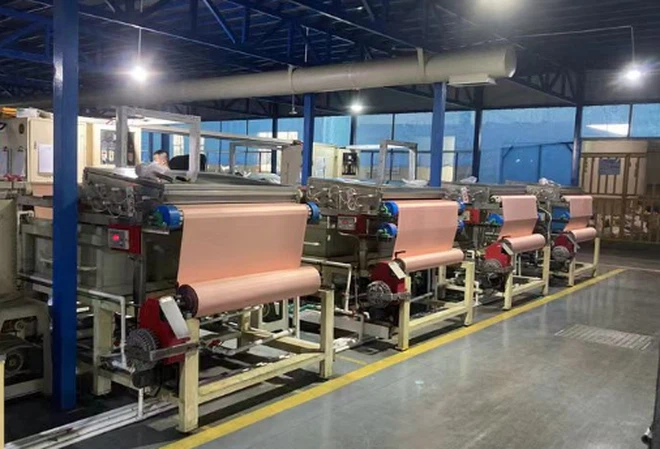

The Substrate Electroplating Process

1. PU Sponge

2. Cleaning Treatment

3. Conductive treatment and electro-plating

4. Conductive Sponge

02.

Personalized service

The product is a unique combination of fabric backing and electrical conductivity, offering unparalleled bonding strength and a clear path for current flow.
Typically, the product is composed of a cotton or polyester fabric embedded or coated with conductive elements, such as metal fibres or conductive adhesives.
We can provide custom products according to our customers' requirements.

Product application

1. Applications in the optoelectronic industry

A. Optoelectronic components:

①Passive devices: amplifiers, single-fiber bidirectional components, etc.

②Active devices: transmitter module, receiver module, transceiver module, single-fiber bidirectional module;

③Diodes and components: laser diode components, etc.;

④CATV components: optical receiver components, return components, laser diode components, etc.

B. Liquid Crystal industry:

①Display device: a display screen, monitor, etc.;

②Control circuit: control module, backlight module, etc.;

C. Optical lens and lens industry:

①Digital camera lens, objective lens, etc.;

②Optical communication grating, filter, etc.

2. Applications in the Microelectronics Industry

A. Semiconductor Industry:

①Application in electronic component industry: packaging box liner;

②Integrated circuits: digital IC, linear IC, monolithic IC, thick film IC, MOS IC, hybrid IC, etc. Their characteristics are related to the sealing mode;

③Semiconductor tubes: diode, transistor/crystal oscillator, thyristor, etc.

④Components of the MOS structure: CMOS, DMOS/EMOS, NMOS, VMOS, HMOS; some can be avoided by designing protective circuits;

Semiconductor tubes: diode, transistor/crystal oscillator, thyristor, etc.

B. PCB and various boards:

①PCB and board including the aforementioned components:

②Modules and devices including the above components, such as light source module, photoelectric module, communication module, IGBT module, etc;

③Applications in aerospace, communication, military munitions, chemical and chemical industry.

Be used in a wide range of industries.

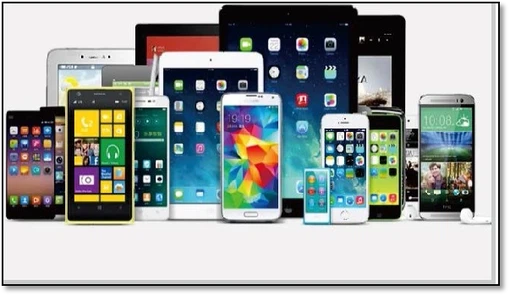

Communication equipment

Gaming equipment

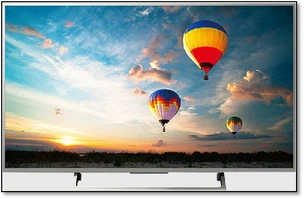

Display device

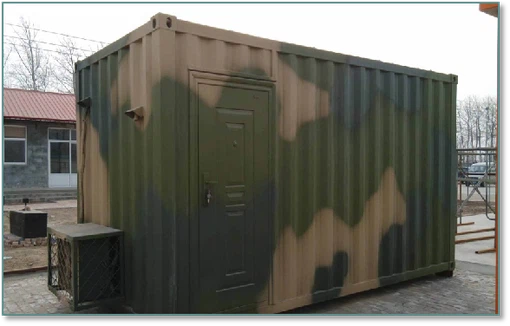

Shielded shelter

Electromagnetic shielding tent

Military camouflage of tactical targets

Packing & delivery

Packing Details

Our standard export packing is as follows: internal anti-collision protection, external export wooden box packing.

We can supply express, air, and sea, and will find the most suitable way according to customer requirements.

We accept responsibility for damage incurred during transportation. In this condition, we will replace the damaged part free of charge.

We offer packaging solutions that can be tailored to meet our customers' specific requirements. Our team is equipped to select the most suitable transportation vehicles, taking into account the specific packing conditions.

Delivery Time

10-15 days after confirming the order, the specific delivery date of anti static fabric products should be based on the production season and order quantity.

product-1024-768

FAQ

do you have any question?

Are you a factory or trading company?

We are a direct factory that owns production lines and employs workers. Our operations are flexible, and you do not need to worry about extra charges from middlemen or traders.

What are the products used for?

Most of our customers use our products for filtration, shielding, catalyst carriers, integrated electronics, lightweight vehicles and engineering equipment, aerospace and other fields, can produce various shapes, structures, different particle size, porosity of porous components.

Could you please confirm if any discounts are available?

Big buyers and those interested in long-term cooperation may be eligible for discounted prices.

Do you accept OEM or Customized production?

Yes, we welcome customised and OEM products. A quotation will be provided within 24 hours of receiving all the necessary details about the desired products. Customised samples may take 1-2 weeks to develop.

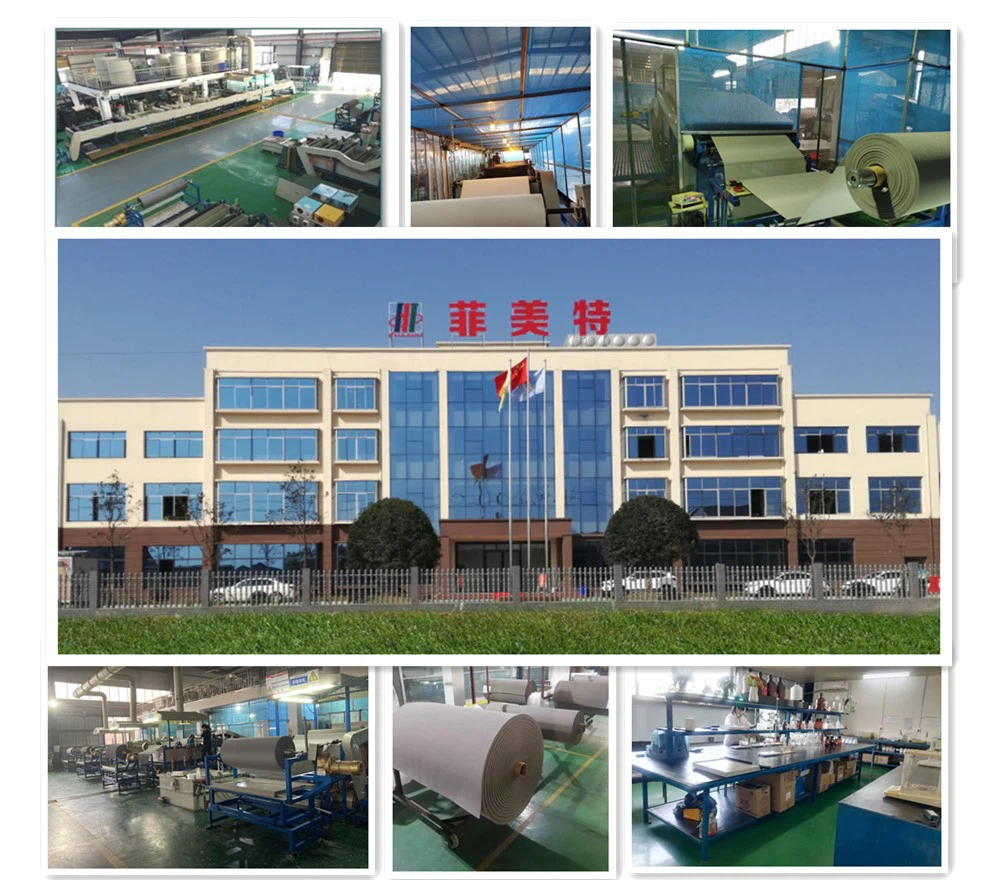

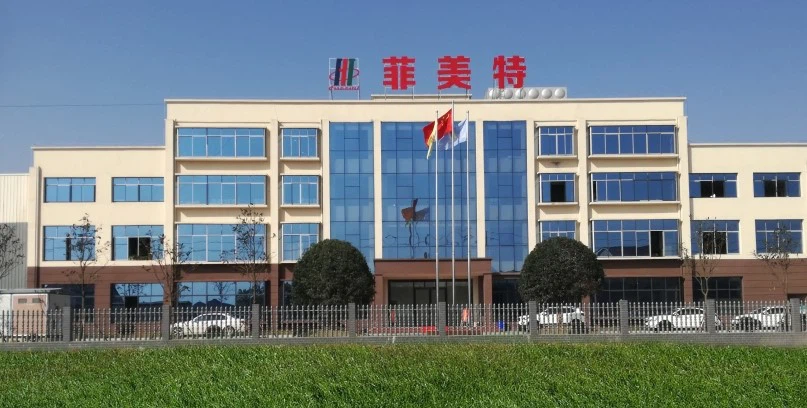

Company profile

About our company

Our company was founded in 2015, it's a new materials industry with capabilities on independent R&D, production and sales as one . Which specializes in R&D and production of metal foam materials, EMI shielding materials and surface electroplating metal materials for many years. Our R&D team is composed of academicians and experts from domestic metal foam professionals.

After many years of efforts, we now own our own intellectual property rights in the production of high purity and high porosity metal foams.

Our metal foams are widely used in filtration, shielding, catalyst support, integrated electronics, lightweight vehicles and engineering equipment, aerospace and other fields.
