Copper Metal Foam

Material: copper, pure copper
Thickness: 0.1-35mm, can be customized
Aperture: 0.1-10mm
Porosity: 60-98%, can be customized
Through porosity: ≥98%, can be customized
Bulk density: 0.1-3.0g/cm3, can be customized
PPI (number of holes per inch): 5-150
Size: various sizes and shapes can be customized
Thermal conductivity: ≥180 W/(m•K)
Conductivity: 57 S/m

Send Inquiry

Description

Product introduction

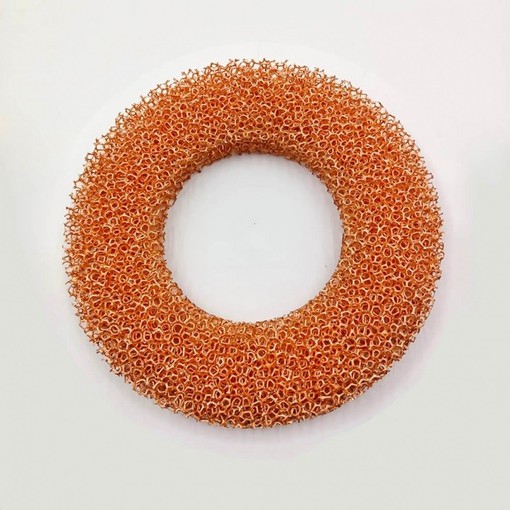

Copper metal foam, also known as copper foam, is a three-dimensional porous copper metal foam with high purity and uniform pore structure. It is made of copper material with a completely open-cell structure comprising a large number of interconnected pores uniformly.
The product is widely used for thermal conduction and heat dissipation in electronic and electrical components due to its excellent thermal and electrical conductivity, as well as its unique pore structure.

Main feature

Copper metal foam boasts excellent mechanical and processing properties, exceptional electrical and thermal conductivity due to its three-dimensional porous structure with uniform pores.
Additionally, it exhibits excellent corrosion resistance, high tensile strength, and good ductility, as well as strong electromagnetic shielding capability.

learn more

Product parameter

Thickness	0.1-35mm, can be customized
Aperture	0.1-10mm
Porosity	60-98%, can be customized
Through porosity	≥98%, can be customized
Bulk density	0.1-3.0g/cm3, can be customized
PPI (number of holes per inch)	5-150
Size	Various sizes and shapes can be customized
Thermal conductivity	≥180 W/(m•K)
Conductivity	57 S/m

Component Content
Element	Cu	Ni	Fe	S	C	Si
Guideline(ppm)	Balance	0.5~5%	≤100	≤80	≤100	≤50

copper foam metal

product key technologies

01.

The Substrate Electroplating Process

1. PU Sponge

2. Cleaning Treatment

3. Conductive treatment

4. Shearing and Electro-plating

5. Sintering

6. Porous metal foams

02.

Personalized Service

The material's filtration and flow characteristics can be precisely controlled due to its PPI range of 5 to 150 and pore size range of 0.1mm to 10mm. Our commitment is to provide customers with innovative, high-quality porous materials that meet a wide range of industrial and commercial needs. Our products deliver superior performance and durability.

Product application

Its excellent electrical conductivity makes it an ideal electrode substrate for a range of applications, including lithium-ion batteries, fuel cells, nickel-zinc batteries, and electrical double-layer capacitors.
It also has applications as a heat dissipation material, heat absorption material, chemical catalyst carrier, and electromagnetic shielding material.
Moreover, copper metal foam are commonly used for filtering materials, damping materials, battery electrode materials, noise reduction materials, and high-quality decorative materials.

Be used in a wide range of industries.

Conductive Device

Buffer Device

Heat Conducting Device

Electrode Material

Heat Exchanger

Heat Sink

Packing & delivery

Packing Details

Standard export packing: internal anti-collision protection, external export wooden box packing.
Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
Responsible for the damage during the shipping process, will change the damaged part for you free of charge.
We offer packaging solutions that can be tailored to meet our customers' specific requirements. Our team is equipped to select the most suitable transportation vehicles, taking into account the specific packing conditions.

Delivery Time

The delivery date for copper metal foam products will be confirmed within 10-15 days after the order is placed. The specific date will depend on the production season and order quantity.

product-1000-780

FAQ

01.Are you a manufacturer or a trader?

We are a direct factory that owns production lines and employs workers. Our operations are flexible, and you do not need to worry about extra charges from middlemen or traders.

02.Can I receive free samples?

If the sample is available, it can be provided for free. If the sample is unavailable, customization is required.

03.Can the products be customized?

All products can be customized to meet your specific requirements.

04.What is the delivery time after payment?

The delivery time is usually 3-5 days for in-stock goods and 15-20 days for customized goods.

05.What is the minimum order quantity for your products?

Actually, there is no minimum order quantity. However, we usually recommend a quantity based on the price that is easy to accept.

why choose us

why choose our products

As a manufacturer, we offer competitive factory prices.

Our professional R&D team can customize products to meet individual requests.

Our scientific and strict management ensures high quality, efficiency, and stable supply.

We take great pride in the pore properties and packing density of our porous materials. Our products offer exceptional consistency and uniformity in pore distribution, ensuring reliable and predictable performance across a range of applications.we recognise the significance of porous material quality and performance. Therefore, we invest in cutting-edge manufacturing processes and quality control measures to ensure that our products meet the highest standards. With a commitment to innovation and excellence, we are confident we can deliver the performance and reliability needed to meet your unique requirements. Contact us today to learn more about our porous materials and how they can benefit your business.
